精心為您推薦【ZSRL氣動L型三通球閥ZSRT氣動T型三通球閥】是上海喬邑閥門制造有限公司生產銷售的主要產品之一，公司常年備有大量庫存現貨以出廠價直銷，我們一直努力為客戶提供全套工業閥門的解決方案，讓客戶購買到物美價廉的產品，歡迎咨詢選購！
產品簡介：

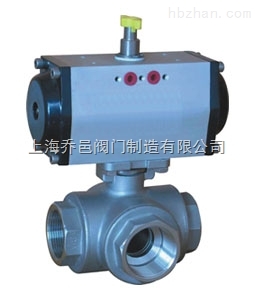

ZSRL氣動L型三通球閥ZSRT氣動T型三通球閥是由氣動執行機構和三通閥組成，是一種旋轉類切斷調節閥門，具有關閉嚴密，結構緊湊，重量輕，維修方便等優點。ZSRL(T)氣動三通球閥廣泛用于氣體、液體、蒸汽、油品等腐蝕性介質的管道自動化控制中。
主要外形尺寸
|
公稱壓力或壓力級 |
公稱通徑 |
尺寸（mm） |
|||||||
|
mm |
in |
L |
L1 |
D |
D1 |
D2 |
b |
z-Φd |
|
|
|
15 |
|
130 |
65 |
95 |
65 |
45 |
14 |
4-14 |
|
20 |
|
150 |
75 |
105 |
75 |
55/58 |
14/16 |
4-14 |
|
|
25 |
|
160 |
80 |
115 |
85 |
65/68 |
14/16 |
4-14 |
|
|
32 |
|
180 |
90 |
135/140 |
100 |
78 |
16 |
4-18 |
|
|
PN1.6MPa |
40 |
|
200 |
100 |
145/150 |
110 |
85/88 |
16 |
4-18 |
|
50 |
|
230 |
115 |
160/165 |
125 |
100/102 |
16/18 |
4-18 |
|
|
65 |
|
290 |
145 |
180/185 |
145 |
120/122 |
18 |
4-18 |
|
|
80 |
|
310 |
155 |
195/200 |
160 |
135/138 |
20 |
4-18 |
|
|
100 |
|
350 |
175 |
215/220 |
180 |
155/158 |
20 |
4-18 |
|
|
125 |
|
400 |
200 |
245/250 |
210 |
185/188 |
22 |
4-18 |
|
|
150 |
|
480 |
240 |
280/285 |
240 |
210/212 |
24/22 |
8-23/8-22 |
|
|
|
15 |
|
130 |
65 |
95 |
65 |
45 |
16 |
4-14 |
|
20 |
|
150 |
75 |
105 |
75 |
55/58 |
16 |
4-14 |
|
|
25 |
|
160 |
80 |
115 |
85 |
65/68 |
16 |
4-14 |
|
|
32 |
|
180 |
90 |
135/140 |
100 |
78 |
18 |
4-18 |
|
|
PN2.5MPa
|
40 |
|
200 |
100 |
145/150 |
110 |
85/88 |
18 |
4-18 |
|
50 |
|
230 |
115 |
160/165 |
125 |
100/102 |
20 |
4-18 |
|
|
65 |
|
290 |
145 |
180/185 |
145 |
120/122 |
22 |
8-18 |
|
|
80 |
|
310 |
155 |
195/200 |
160 |
135/138 |
22/24 |
8-18 |
|
|
100 |
|
350 |
175 |
230/235 |
190 |
160/162 |
24 |
8-23/8-22 |
|
|
125 |
|
400 |
200 |
270 |
220 |
188 |
28/26 |
8-25/8-26 |
|
|
150 |
|
480 |
240 |
300 |
250 |
218 |
30/28 |
8-25/8-26 |
|
|
PN4.0MPa
|
15 |
|
130 |
65 |
95 |
65 |
45 |
16 |
4-14 |
|
20 |
|
150 |
75 |
105 |
75 |
55/58 |
16 |
4-14 |
|
|
25 |
|
160 |
80 |
115 |
85 |
65/68 |
16 |
4-14 |
|
|
32 |
|
180 |
90 |
135/140 |
100 |
78 |
18 |
4-18 |
|
|
40 |
|
200 |
100 |
145/150 |
110 |
85/88 |
18 |
4-18 |
|
|
50 |
|
230 |
115 |
160/165 |
125 |
100/102 |
20 |
4-18 |
|
|
65 |
|
290 |
145 |
180/185 |
145 |
120/122 |
22 |
8-18 |
|
|
80 |
|
310 |
155 |
195/200 |
160 |
135/138 |
22 |
8-18 |
|
|
100 |
|
350 |
175 |
230/235 |
190 |
160/162 |
24 |
8-23/8-22 |
|
|
125 |
|
400 |
200 |
270 |
220 |
188 |
28 |
8-25/8-26 |
|
|
150 |
|
480 |
240 |
300 |
250 |
218 |
30 |
8-25/8-26 |
|
|
|
15 |
1/2 |
130 |
65 |
89 |
60.5 |
35 |
- |
4-15 |
|
20 |
3/4 |
150 |
75 |
98 |
70 |
43 |
- |
4-15 |
|
|
25 |
1 |
160 |
80 |
108/110 |
79.5 |
51 |
11.5 |
4-15/4-16 |
|
|
32 |
11/4 |
180 |
90 |
117/120 |
89 |
64 |
13.0 |
4-15/4-16 |
|
|
40 |
11/2 |
200 |
100 |
127/130 |
98.5 |
73 |
14.5 |
4-15/4-16 |
|
|
50 |
2 |
230 |
115 |
152/150 |
120.5 |
92 |
16.0 |
4-19/4-20 |
|
|
65 |
21/2 |
290 |
145 |
178/180 |
139.5 |
105 |
17.5 |
4-19/4-20 |
|
|
80 |
3 |
310 |
155 |
190 |
152.5 |
127 |
19.5 |
4-19/4-20 |
|
|
100 |
4 |
350 |
175 |
229/230 |
190.5 |
157 |
24.0 |
8-19/4-20 |
|
|
125 |
5 |
400 |
200 |
254/255 |
216.0 |
186 |
24.0 |
8-22 |
|
|
150 |
6 |
480 |
240 |
279/280 |
241.5 |
216 |
25.5 |
8-22 |
|
|
JIS10K |
15 |
|
130 |
65 |
95 |
70 |
52 |
12 |
4-15 |
|
20 |
|
150 |
75 |
100 |
75 |
58 |
14 |
4-15 |
|
|
25 |
|
160 |
80 |
125 |
90 |
70 |
14 |
4-19 |
|
|
32 |
|
180 |
90 |
135 |
100 |
80 |
16 |
4-19 |
|
|
40 |
|
200 |
100 |
140 |
105 |
85 |
16 |
4-19 |
|
|
50 |
|
230 |
115 |
155 |
120 |
100 |
16 |
4-19 |
|
|
65 |
|
290 |
145 |
175 |
140 |
120 |
18 |
4-19 |
|
|
80 |
|
310 |
155 |
185 |
150 |
130 |
18 |
8-19 |
|
|
100 |
|
350 |
175 |
210 |
175 |
155 |
18 |
8-19 |
|
|
125 |
|
400 |
200 |
250 |
210 |
185 |
20 |
8-23 |
|
|
150 |
|
480 |
240 |
280 |
240 |
215 |
22 |
8-23 |
|
注：1、表中以分數表示者，分子為JB/T74~90系列2尺寸（等同于原機標JB74~90~59的尺寸），分母JB/T74~90系列
1、GB9112~9131（PN1.6、2.5、4.0Mpa）及HGJ44~76尺寸。
2、表中以分數表示者，分子為ANSIB16.5尺寸，分母為GB9112~9131、SH3406尺寸。
上海喬邑閥門為您提供優質的【ZSRL氣動L型三通球閥ZSRT氣動T型三通球閥】產品和完善的售后服務，如需訂購本產品，請提供口徑、壓力、材質等詳細參數！本文中所有的文字、圖片、數據僅供參考，若需要了解更多的性能參數、結構尺寸、價格等詳情，請聯系我們！
